Routing Rules

Overview

Section titled “Overview”

Routing Rules provide dynamic, expression-based control over request routing. They execute before governance provider selection and can override it, allowing you to make sophisticated routing decisions based on request context, headers, parameters, capacity metrics, and organizational hierarchy.

Unlike governance routing (which uses static provider weights), routing rules use CEL expressions (Common Expression Language) to evaluate conditions at runtime and make routing decisions dynamically.

How It Works

Section titled “How It Works”

Request Flow

Section titled “Request Flow”
Routing Rules Request Flow

Scope Hierarchy & Precedence

Section titled “Scope Hierarchy & Precedence”

Routing rules are organized by scope with first-match-wins evaluation:

VirtualKey Scope (Highest Priority)
    ↓
Team Scope
    ↓
Customer Scope
    ↓
Global Scope (Lowest Priority, applies to all)

How it works:

  1. When a request arrives with a Virtual Key, DeepIntShield builds a scope chain
  2. Rules are evaluated in scope order (highest to lowest)
  3. The first matching rule wins - no further rules are evaluated
  4. Within each scope, rules are sorted by priority (ascending: 0 evaluates before 10)
  5. If no rule matches, the incoming provider/model is used unchanged

Example:

VirtualKey (vk-123) is attached to Team (team-456),
which belongs to Customer (cust-789)


Evaluation order:
1. Check Virtual Key scope rules (vk-123)
2. Check Team scope rules (team-456)
3. Check Customer scope rules (cust-789)
4. Check Global scope rules


First match → Decision

CEL Expression Guide

Section titled “CEL Expression Guide”

Available Variables

Section titled “Available Variables”

Routing rules evaluate CEL expressions with these available variables:

Request Context

Section titled “Request Context”
model          // Requested model (string)
provider       // Current provider (string)
request_type   // Request type (chat_completion, embedding, batch, image_generation, moderation, transcription, translation)

Headers & Parameters

Section titled “Headers & Parameters”
headers["header-name"]     // Request header (case-insensitive key lookup)
params["param-name"]        // Query parameter

Header Examples:

headers["x-tier"] == "premium"
headers["x-api-version"] == "v2"
headers["user-agent"].contains("mobile")

Organization Context

Section titled “Organization Context”
virtual_key_id             // VK ID (string, empty if no VK)
virtual_key_name           // VK name (string)
team_id                    // Team ID (string, empty if not in team)
team_name                  // Team name (string)
customer_id                // Customer ID (string)
customer_name              // Customer name (string)

Organization Examples:

team_name == "ml-research"
customer_id == "acme-corp"
virtual_key_name.startsWith("prod-")

Capacity Metrics (as percentages: 0-100)

Section titled “Capacity Metrics (as percentages: 0-100)”
budget_used      // Budget usage percentage for provider/model (0.0 to 100.0)
tokens_used      // Token rate limit usage percentage (0.0 to 100.0)
request          // Request rate limit usage percentage (0.0 to 100.0)

Capacity Examples:

budget_used > 80           // Route to fallback when 80%+ of budget used
tokens_used < 50           // Route to fast provider when below 50% token limit
request > 90               // Switch providers when request limit near max

CEL Operators & Functions

Section titled “CEL Operators & Functions”

Comparison Operators

Section titled “Comparison Operators”
==    // Equal
!=    // Not equal
>     // Greater than
<     // Less than
>=    // Greater or equal
<=    // Less or equal

Logical Operators

Section titled “Logical Operators”
&&    // AND
||    // OR
!     // NOT

String Functions

Section titled “String Functions”
.startsWith("prefix")      // Check string prefix
.endsWith("suffix")        // Check string suffix
.contains("substring")     // Check substring
.matches("regex")          // Regex match

Collections

Section titled “Collections”
"value" in ["item1", "item2", "item3"]    // Check membership

Expression Examples

Section titled “Expression Examples”

Simple Conditions

Section titled “Simple Conditions”
// Route based on header value
headers["x-tier"] == "premium"


// Route based on team
team_name == "research"


// Route based on model
model == "gpt-4o"


// Route based on request type
request_type == "embedding"


// Route to fallback when budget high
budget_used > 80

Complex Conditions (Multiple Criteria)

Section titled “Complex Conditions (Multiple Criteria)”
// Premium tier research team
headers["x-tier"] == "premium" && team_name == "research"


// High capacity or premium
budget_used > 90 || headers["x-priority"] == "high"


// Specific team and model
team_name == "ml-ops" && model.startsWith("claude-")


// Region-based with capacity check
headers["x-region"] == "us-east" && tokens_used < 75


// Route embeddings to cheaper provider
request_type == "embedding" && budget_used > 50

Pattern Matching

Section titled “Pattern Matching”
// Match models starting with prefix
model.startsWith("gpt-4")


// Match custom headers
headers["x-environment"] in ["staging", "testing"]


// Email domain matching
headers["x-user-email"].contains("@company.com")


// Regex patterns
headers["x-app-version"].matches("[0-9]+\\.[0-9]+\\.[0-9]+")

Validation & Error Handling

Section titled “Validation & Error Handling”
  • Invalid CEL syntax → Rule logs warning, skipped, evaluation continues
  • Missing header/parameter → Expression returns false (graceful no-match)
  • Type mismatches → Logged as warning, rule skipped
  • Empty expression → Rule always matches (use true/false for explicit behavior)

Configuration

Section titled “Configuration”

Access routing rules from the dashboard:

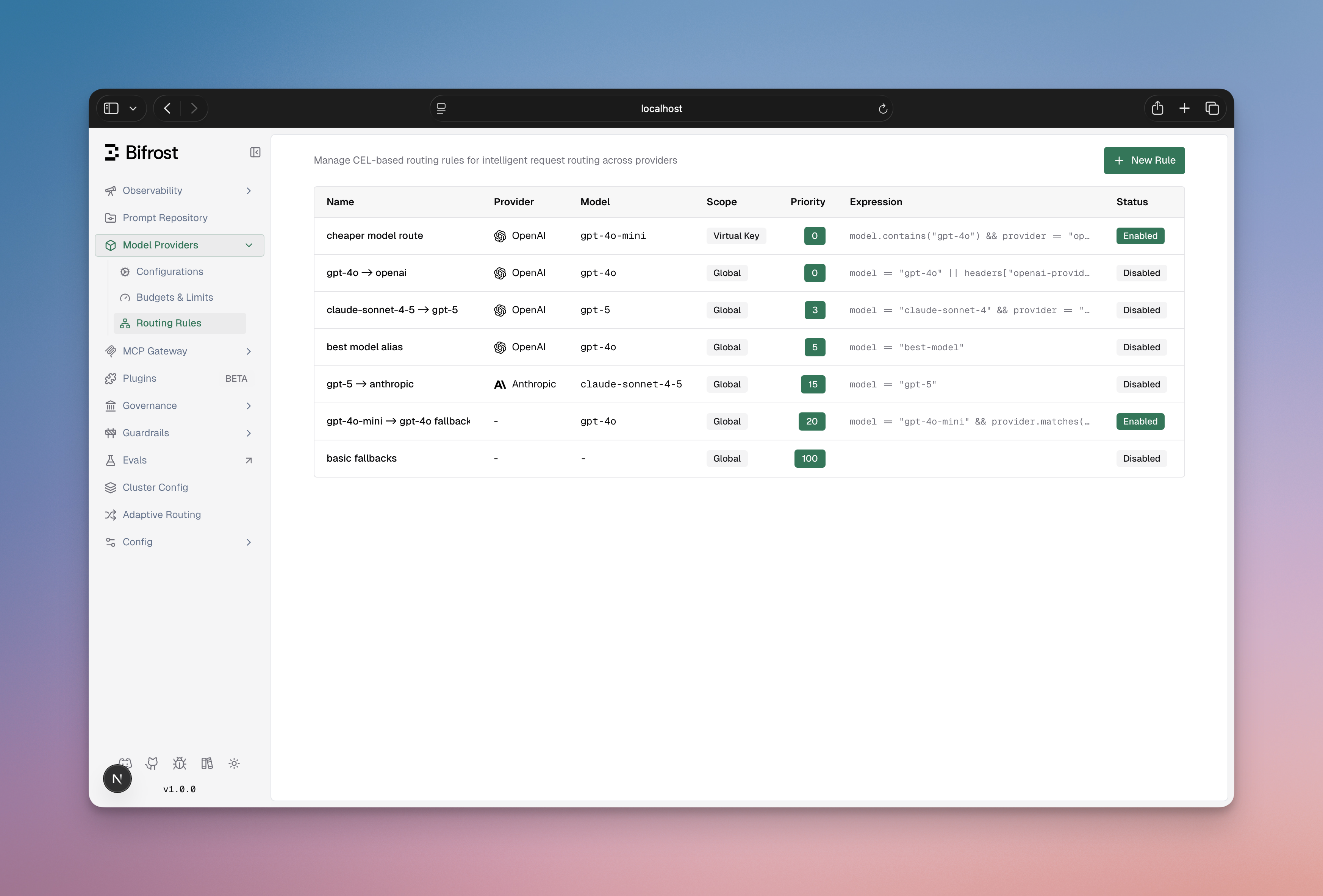

Routing Rules Dashboard

Routing Rules Dashboard

Features:

  • List all rules with scope, priority, and enabled status
  • Filter by scope or scope_id
  • Create/Edit/Delete rules
  • View rule expressions and targets
  • Enable/disable rules without deletion
  • Drag to reorder priority

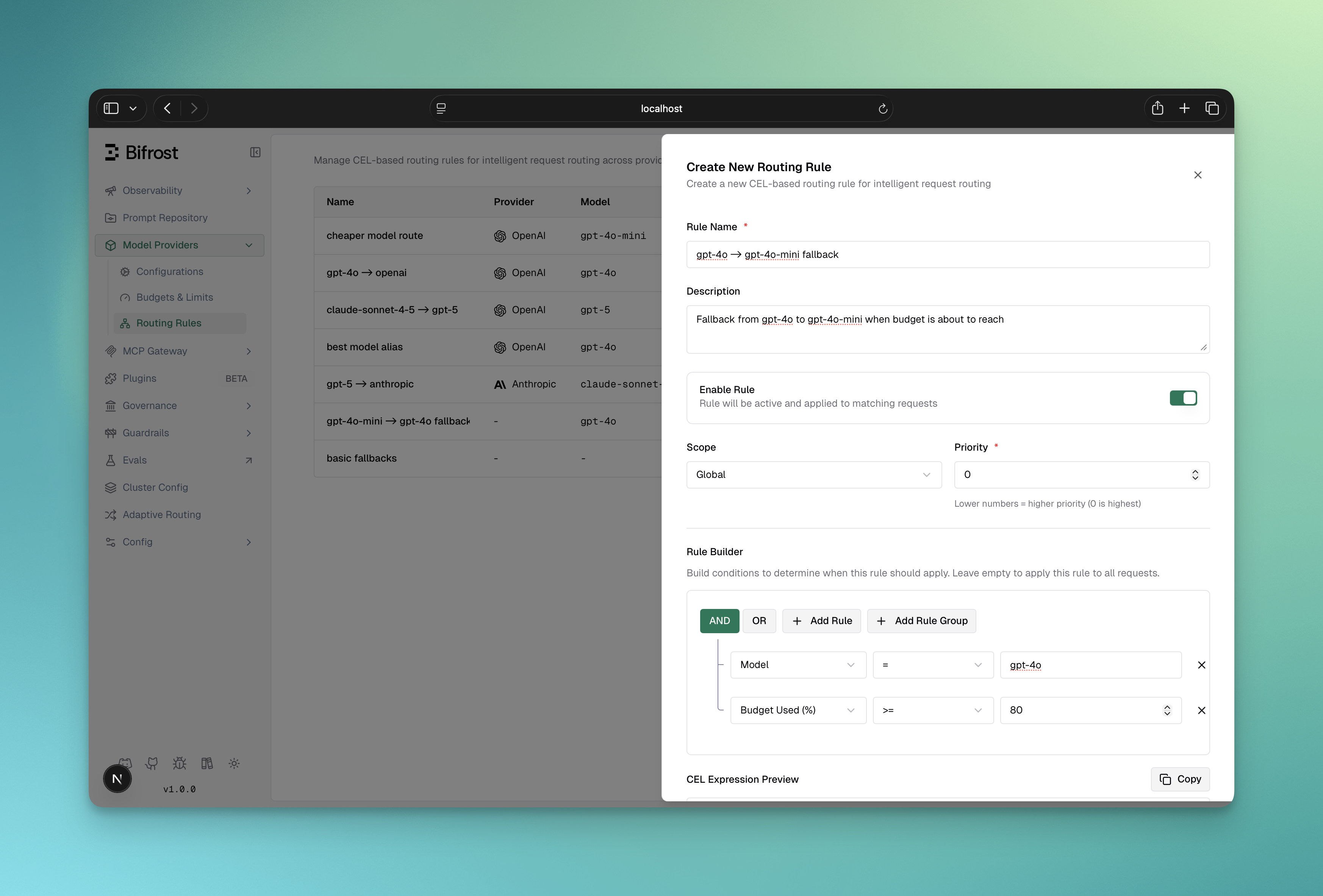

Create/Edit Rule Sheet

Create Routing Rule Dialog

Fields:

  • Name (required): Unique rule identifier
  • Description (optional): Internal notes
  • Enabled: Toggle rule on/off
  • CEL Expression: Visual or manual expression builder
  • Targets (required): One or more weighted routing targets — each has Provider (optional), Model (optional), API Key (optional, requires Provider to be set), and Weight (%). Weights must sum to 1. When multiple targets are defined, one is selected probabilistically at request time.
  • Fallbacks (optional): Array of fallback providers
  • Scope: Where rule applies (global, customer, team, virtual_key)
  • Scope ID: Required if scope is not global
  • Priority: Lower = evaluated first (default: 0)

Visual CEL Builder

Section titled “Visual CEL Builder”

The dashboard includes a visual query builder for CEL expressions:

  • Condition Builder: Select field, operator, value
  • Logical Operators: Combine conditions with AND/OR
  • Manual Mode: Switch to edit CEL directly
  • Validation: Real-time syntax validation
  • Conversion: Auto-converts visual rules to CEL

Real-World Use Cases

Section titled “Real-World Use Cases”

When to use Routing Rules:

  • Dynamic routing based on request headers or parameters
  • Capacity-based routing (route to fallback when budget/rate limit is high)
  • Organization-based routing (different rules for different teams/customers)
  • A/B testing or canary deployments
  • Conditional provider override based on complex logic

Use Case 1: Tier-Based Routing

Section titled “Use Case 1: Tier-Based Routing”

Route requests based on customer tier using headers:

{
  "name": "Premium Tier Fast Track",
  "cel_expression": "headers[\"x-tier\"] == \"premium\"",
  "targets": [
    { "provider": "openai", "model": "gpt-4o", "weight": 1 }
  ],
  "fallbacks": ["azure/gpt-4o"],
  "scope": "global",
  "priority": 10
}

Use Case 2: Capacity-Based Failover

Section titled “Use Case 2: Capacity-Based Failover”

Route to cheaper provider when budget is exhausted:

{
  "name": "Budget Exhaustion Fallback",
  "cel_expression": "budget_used > 90",
  "targets": [
    { "provider": "groq", "model": "llama-2-70b", "weight": 1 }
  ],
  "fallbacks": [],
  "scope": "global",
  "priority": 5
}

Use Case 3: Team-Specific Routing

Section titled “Use Case 3: Team-Specific Routing”

Route team-specific requests to their preferred provider:

{
  "name": "ML Team Anthropic Preference",
  "cel_expression": "team_name == \"ml-research\"",
  "targets": [
    { "provider": "anthropic", "model": "claude-3-opus-20240229", "weight": 1 }
  ],
  "fallbacks": ["bedrock/claude-3-opus"],
  "scope": "team",
  "scope_id": "team-ml-research-uuid",
  "priority": 0
}

Use Case 4: Complex Multi-Condition Routing

Section titled “Use Case 4: Complex Multi-Condition Routing”

Combine multiple criteria for sophisticated routing:

{
  "name": "Production Premium Route",
  "cel_expression": "headers[\"x-environment\"] == \"production\" && headers[\"x-priority\"] == \"high\" && tokens_used < 75",
  "targets": [
    { "provider": "openai", "model": "gpt-4o", "weight": 1 }
  ],
  "fallbacks": ["azure/gpt-4o"],
  "scope": "global",
  "priority": 5
}

Use Case 5: Probabilistic A/B Testing

Section titled “Use Case 5: Probabilistic A/B Testing”

Split traffic across providers or models by weight for canary deployments or cost optimization:

{
  "name": "Split Traffic OpenAI vs Groq",
  "cel_expression": "true",
  "targets": [
    { "provider": "openai", "model": "gpt-4o",        "weight": 0.7 },
    { "provider": "groq",   "model": "llama-3.1-70b", "weight": 0.3 }
  ],
  "scope": "global",
  "priority": 15
}

Each request matching this rule has a 70% chance of going to OpenAI and a 30% chance of going to Groq. Weights must always sum to 1.

Use Case 6: Regional Routing

Section titled “Use Case 6: Regional Routing”

Route based on region headers:

{
  "name": "EU Data Residency",
  "cel_expression": "headers[\"x-region\"] == \"eu\"",
  "targets": [
    { "provider": "azure", "model": "gpt-4o", "weight": 1 }
  ],
  "fallbacks": [],
  "scope": "global",
  "priority": 0
}

Integration with Governance & Load Balancing

Section titled “Integration with Governance & Load Balancing”

Interaction with Governance Routing

Section titled “Interaction with Governance Routing”

Routing Rules run BEFORE governance provider selection and can override it:

If a routing rule matches:

1. Routing Rules → CEL expression evaluation (first-match-wins)
2. Rule matches → target selected probabilistically from targets array
3. provider/model/key_id/fallbacks overridden from selected target
4. Governance provider_configs → SKIPPED
5. Load Balancing → selects best key (unless key_id was pinned)

If no routing rule matches:

1. Routing Rules → CEL expression evaluation
2. No match → continue
3. Governance routing → provider/model selection (weighted random)
4. Load Balancing → selects best key

Example:

  • Governance configures: 70% Azure, 30% OpenAI
  • Routing rule exists: budget_used > 85 → groq
  • Request arrives with budget_used = 90%
  • Result: Groq selected by routing rule, governance provider_configs ignored

Interaction with Load Balancing

Section titled “Interaction with Load Balancing”

Routing rules determine provider BEFORE adaptive load balancing runs:

1. Routing Rules evaluate first → determine provider (if matched)
   OR
2. Governance selects provider (if no routing rule matched)
   ↓
3. Load Balancing Level 1 → skipped (provider already determined by routing rules or governance)
4. Load Balancing Level 2 → key selection (performance-based within selected provider)

Key Insight: Load balancing Level 2 (key selection) always runs regardless of whether the provider was determined by routing rules or governance. This means you get automatic key-level optimization in all cases.

Fallback Chain

Section titled “Fallback Chain”

Routing rules can define fallbacks that flow into load balancing:

{
  "provider": "openai",
  "fallbacks": ["azure/gpt-4o", "groq/gpt-3.5-turbo"]
}

If OpenAI fails:

  1. Level 2 load balancing evaluates Azure keys
  2. If all Azure keys fail, tries Groq

Execution & Performance

Section titled “Execution & Performance”

CEL Compilation

Section titled “CEL Compilation”
  • First evaluation: CEL expression is compiled into a bytecode program
  • Subsequent evaluations: Program is cached and reused
  • Performance: Cached program evaluation is very fast (microseconds)
  • Memory: Compiled programs cached in memory until DeepIntShield restart

Priority & Ordering

Section titled “Priority & Ordering”

Rules within the same scope are evaluated in ascending priority order:

Priority 0 → Priority 5 → Priority 10 → Priority 100 (first match wins)

Best Practice: Use priority 0-10 for critical rules, 100+ for fallbacks.

Optimization Tips

Section titled “Optimization Tips”
  1. Order rules by likelihood: Put frequently matching rules first
  2. Use specific scopes: Avoid global scope when possible (narrower = faster)
  3. Avoid expensive string operations: Prefer == over .matches() with regex
  4. Keep expressions simple: Complex conditions increase evaluation time
  5. Use reasonable priorities: Gaps in priorities (0, 10, 20) make reordering easy

Best Practices

Section titled “Best Practices”
Rule Naming

✅ Good names:

  • “Premium Tier Fast Track”
  • “Budget Exhaustion Fallback”
  • “ML Team Anthropic Route”
  • “Production High Priority Route”

❌ Bad names:

  • “Rule 1”
  • “Fix”
  • “Temp”
  • “TODO”
CEL Expression Safety

✅ Safe patterns:

headers["x-tier"] == "premium"                    // Exact match
headers["x-region"] in ["us", "eu", "asia"]      // Membership
team_name.startsWith("prod-")                    // Prefix check
budget_used > 80                                 // Numeric comparison

❌ Risky patterns:

headers["x-tier"].matches(".*premium.*")         // Complex regex
headers["x-config"].contains("json")             // Fragile
model.length() > 5 && ...                        // Undocumented behavior
Scope Management

✅ Good scope design:

  • Global rules for organization-wide policies
  • Customer scope for compliance (EU, data residency)
  • Team scope for team preferences
  • Virtual Key scope for specific integrations

❌ Avoid:

  • Too many virtual key-level rules (maintenance nightmare)
  • Conflicting rules across scopes
  • Rules that duplicate governance routing
Testing & Validation

✅ Validate before deployment:

  1. Test CEL expression with expected headers
  2. Verify provider/model exist in your setup
  3. Check fallbacks are valid providers
  4. Confirm scope_id matches actual entity
  5. Test with from_memory=true to verify in-memory state

❌ Don’t:

  • Deploy rules without testing
  • Use nonexistent providers
  • Create circular fallback chains
Monitoring

✅ Track rule usage:

  • Log which rules match (logged in DeepIntShield logs as [RoutingEngine])
  • Monitor routing decisions by scope
  • Alert on unexpected provider selection patterns
  • Review priority order occasionally

❌ Don’t forget:

  • Disabling unused rules (instead of deleting)
  • Updating documentation when rules change
  • Testing failover chains

Troubleshooting

Section titled “Troubleshooting”

Rule Not Matching

Section titled “Rule Not Matching”

Symptom: Rule expression is correct but doesn’t match

Diagnosis:

  1. Check if rule is enabled (enabled: true)
  2. Verify scope matches (check VirtualKey’s team/customer hierarchy)
  3. Check rule priority vs other rules in scope (lower priority evaluates first)
  4. Verify variable values: Use from_memory=true to debug

Solutions:

Terminal window
# Get current routing rules in memory
GET /api/governance/routing-rules?from_memory=true


# Check if your variables are present
# Example: Is team_name actually set?
# Verify headers are lowercase in CEL

Expression Compilation Error

Section titled “Expression Compilation Error”

Symptom: “Failed to compile rule: invalid CEL syntax”

Common causes:

  • Unclosed quotes: headers["x-tier (missing closing quote)
  • Invalid operators: headers["x"] ?? (not standard CEL)
  • String escaping: headers["x-\type"] (incorrect escape)

Solutions:

  1. Use the visual CEL builder to avoid syntax errors
  2. Test expressions incrementally
  3. Check CEL operator documentation above
  4. Wrap complex expressions in parentheses: (A && B) || (C && D)

Wrong Provider Selected

Section titled “Wrong Provider Selected”

Symptom: Request routed to unexpected provider

Diagnosis:

  1. Multiple rules matching? (first-match-wins means earlier rules take precedence)
  2. Governance routing already determined provider? (check scope hierarchy)
  3. Load balancing changed key? (rule sets provider, LB sets key)

Solutions:

  1. Lower priority of matching rules
  2. Verify scope precedence (VirtualKey > Team > Customer > Global)
  3. Check if another rule has lower priority and matches first
  4. Review logs: [RoutingEngine] Rule matched! Decision: provider=...

Header/Parameter Not Found

Section titled “Header/Parameter Not Found”

Symptom: “no such key” error in CEL evaluation

This is normal! DeepIntShield treats missing headers as non-matches:

headers["x-optional"] == "value"  # Returns false if header missing

If you need to check if header exists:

headers["x-optional"] != ""  # True only if present and non-empty

Debugging with Logs

Section titled “Debugging with Logs”

Enable debug logging to see routing rule evaluation:

[RoutingEngine] Starting rule evaluation for provider=openai, model=gpt-4o
[RoutingEngine] Scope chain: [virtual_key(vk-123) team(team-456) customer(cust-789) global]
[RoutingEngine] Evaluating scope=virtual_key, scopeID=vk-123, ruleCount=2
[RoutingEngine] Evaluating rule: id=rule-1, name=Premium Route, expression=headers["x-tier"]=="premium"
[RoutingEngine] Rule rule-1 evaluation result: matched=false
[RoutingEngine] Evaluating rule: id=rule-2, name=Budget Fallback, expression=budget_used>80
[RoutingEngine] Rule rule-2 evaluation result: matched=true
[RoutingEngine] Rule matched! Selected target: provider=groq, model=gpt-3.5-turbo (weight=1), fallbacks=[azure/gpt-4o]

API Reference

Section titled “API Reference”

Request/Response Examples

Section titled “Request/Response Examples”

Create Capacity-Based Rule

Section titled “Create Capacity-Based Rule”
Terminal window
curl -X POST http://localhost:8080/api/governance/routing-rules \
  -H "Content-Type: application/json" \
  -d '{
    "name": "High Budget Fallback",
    "description": "Switch to cheaper provider when budget >85%",
    "enabled": true,
    "cel_expression": "budget_used > 85",
    "targets": [
      { "provider": "groq", "model": "llama-2-70b", "weight": 1 }
    ],
    "fallbacks": ["openai/gpt-3.5-turbo"],
    "scope": "global",
    "priority": 10
  }'

Create Probabilistic Split Rule

Section titled “Create Probabilistic Split Rule”
Terminal window
curl -X POST http://localhost:8080/api/governance/routing-rules \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Premium Tier Split",
    "cel_expression": "headers[\"x-tier\"] == \"premium\"",
    "targets": [
      { "provider": "openai", "model": "gpt-4o",   "weight": 0.7 },
      { "provider": "azure",  "model": "gpt-4o",   "weight": 0.3 }
    ],
    "scope": "global",
    "priority": 5
  }'

Create Rule with Pinned API Key

Section titled “Create Rule with Pinned API Key”
Terminal window
curl -X POST http://localhost:8080/api/governance/routing-rules \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Pin Production Key for Premium Tier",
    "description": "Always use the dedicated production key for premium requests",
    "enabled": true,
    "cel_expression": "headers[\"x-tier\"] == \"premium\"",
    "targets": [
      {
        "provider": "openai",
        "model": "gpt-4o",
        "key_id": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
        "weight": 1
      }
    ],
    "scope": "global",
    "priority": 5
  }'

List Rules by Team Scope

Section titled “List Rules by Team Scope”
Terminal window
curl http://localhost:8080/api/governance/routing-rules \
  -H "Authorization: Bearer your-token" \
  -G \
  --data-urlencode "scope=team" \
  --data-urlencode "scope_id=team-uuid-123"

Get In-Memory Rules (Debug)

Section titled “Get In-Memory Rules (Debug)”
Terminal window
curl http://localhost:8080/api/governance/routing-rules?from_memory=true \
  -H "Authorization: Bearer your-token"

Additional Resources

Section titled “Additional Resources”

Provider Routing

Understand how routing rules fit into the complete routing pipeline

Open →

Virtual Keys

Configure Virtual Keys that scope routing rules

Open →

Governance

Learn about the governance layer (applied after routing rules determine provider selection when no rule matches)

Open →

CEL Language Spec

Complete CEL expression language documentation

Open →
