Plugin Sequencing

Overview

When you have multiple plugins — both built-in and custom — the order in which they execute matters. A logging plugin should capture the final request, an auth plugin should validate before anything else runs, and a response transformer should run after the provider returns data.

Plugin sequencing lets you control where your custom plugins execute relative to DeepIntShield’s built-in plugins (telemetry, logging, governance, etc.) and in what order they execute relative to each other.

---

How it works

DeepIntShield organizes plugins into three placement groups that execute in a fixed order:

graph LR
    A["Pre-builtin plugins"] --> B["Built-in plugins"]
    B --> C["Post-builtin plugins"]

Placement Group	Pre-hooks (request)	Post-hooks (response)
pre_builtin	Runs first	Runs last
builtin	Runs second	Runs second
post_builtin	Runs third	Runs first

Note

Post-hooks execute in reverse order of pre-hooks (LIFO pattern). This means a pre_builtin plugin’s PreLLMHook runs first, but its PostLLMHook runs last — ensuring proper cleanup and state unwinding.

Ordering within a group

Within each placement group, plugins are sorted by their order value (lower executes earlier). Plugins with the same order preserve their registration order.

Example: Three custom plugins configured as:

Plugin	Placement	Order	Pre-hook runs	Post-hook runs
auth-validator	pre_builtin	0	1st	5th (last)
request-enricher	pre_builtin	1	2nd	4th
Built-in plugins	—	—	3rd	3rd
response-logger	post_builtin	0	4th	2nd
analytics	post_builtin	1	5th (last)	1st

---

Configuration

Web UI

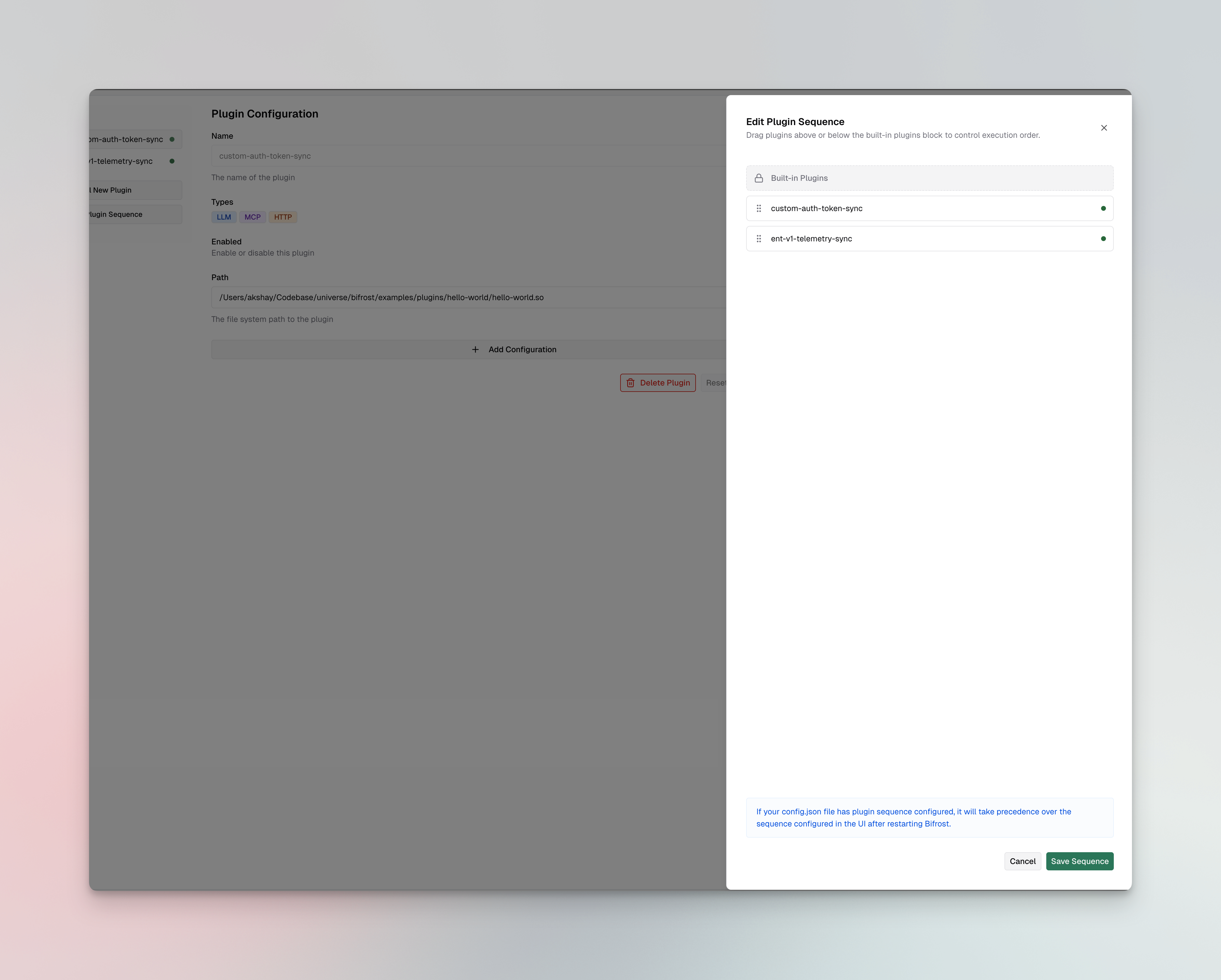

1. Navigate to the Plugins page in the sidebar
2. Click the Edit Plugin Sequence button (appears when you have at least one custom plugin installed)

3. Drag custom plugins above or below the Built-in Plugins block:
   • Plugins above the block get pre_builtin placement
   • Plugins below the block get post_builtin placement
4. The order within each group is determined by position (top = lowest order value)
5. Click Save Sequence to apply the changes

Note

If your config.json file has plugin sequence configured, it will take precedence over the sequence configured in the UI after restarting DeepIntShield.

API

Update a plugin’s placement and order using the update endpoint:

curl -X PUT http://localhost:8080/api/plugins/my-plugin \
  -H "Content-Type: application/json" \
  -d '{
    "enabled": true,
    "path": "/path/to/my-plugin.so",
    "placement": "pre_builtin",
    "order": 0
  }'

Response:

{
  "message": "Plugin updated successfully",
  "plugin": {
    "name": "my-plugin",
    "enabled": true,
    "isCustom": true,
    "path": "/path/to/my-plugin.so",
    "placement": "pre_builtin",
    "order": 0,
    "status": {
      "status": "active"
    }
  }
}

You can also set placement when creating a plugin:

curl -X POST http://localhost:8080/api/plugins \
  -H "Content-Type: application/json" \
  -d '{
    "name": "my-plugin",
    "enabled": true,
    "path": "/path/to/my-plugin.so",
    "placement": "pre_builtin",
    "order": 0
  }'

config.json

Set placement and order on each plugin in the plugins array:

{
  "plugins": [
    {
      "name": "auth-validator",
      "enabled": true,
      "path": "/plugins/auth-validator.so",
      "placement": "pre_builtin",
      "order": 0
    },
    {
      "name": "request-enricher",
      "enabled": true,
      "path": "/plugins/request-enricher.so",
      "placement": "pre_builtin",
      "order": 1
    },
    {
      "name": "response-logger",
      "enabled": true,
      "path": "/plugins/response-logger.so",
      "placement": "post_builtin",
      "order": 0
    }
  ]
}

Field	Type	Required	Default	Description
placement	string	No	post_builtin	"pre_builtin" or "post_builtin". Controls whether the plugin runs before or after built-in plugins.
order	integer	No	0	Position within the placement group. Lower values execute earlier.

---

When to use each placement

pre_builtin — run before built-in plugins

Use this when your plugin needs to:

• Validate or authenticate requests before any built-in processing
• Enrich requests with data that built-in plugins should see (e.g., injecting headers or metadata)
• Short-circuit requests before they reach governance checks or telemetry

post_builtin (default) — run after built-in plugins

Use this when your plugin needs to:

• Transform responses after all built-in processing is complete
• Log or analyze the final request/response (after governance, telemetry, etc.)
• Add custom headers or modify the response before it reaches the client

Tip

When in doubt, use the default post_builtin placement. Most custom plugins — logging, analytics, response transformations — work best after built-in plugins have finished their processing.

---

Next steps

• Writing a Go plugin — Build your first custom plugin with PreLLMHook and PostLLMHook
• Writing a WASM plugin — Build a portable WASM plugin
• Plugin architecture — Deep dive into the plugin lifecycle and hook execution model
