Tool Filtering

Overview

DeepIntShield provides three levels of tool filtering to control which MCP tools are available:

1. Client Configuration - Set which tools a client can execute (tools_to_execute)
2. Request Headers - Filter tools per-request via HTTP headers or context
3. Virtual Key Configuration - Control tools per-VK (Gateway only)

These levels stack: a tool must pass all applicable filters to be available.

graph LR
    All["<b>Available<br/>Tools</b>"]
    Client["<b>Client Config</b><br/>tools_to_execute"]
    Request["<b>Request<br/>Headers</b>"]
    VK["<b>Virtual Key<br/>Filter</b>"]
    Final["<b>Tools<br/>for LLM</b>"]

    All --> Client
    Client --> Request
    Request --> VK
    VK --> Final

    style All fill:#EEEEEE,stroke:#424242,stroke-width:2.5px,color:#1A1A1A
    style Client fill:#E3F2FD,stroke:#0D47A1,stroke-width:2.5px,color:#1A1A1A
    style Request fill:#F3E5F5,stroke:#4A148C,stroke-width:2.5px,color:#1A1A1A
    style VK fill:#E8F5E9,stroke:#1B5E20,stroke-width:2.5px,color:#1A1A1A
    style Final fill:#FFFDE7,stroke:#F57F17,stroke-width:2.5px,color:#1A1A1A

---

Level 1: Client Configuration

The tools_to_execute field on each MCP client config defines the baseline of available tools.

Semantics

Value	Behavior
["*"]	All tools from this client are available
[] or omitted	No tools available (deny-by-default)
["tool1", "tool2"]	Only specified tools are available

Configuration

Gateway

curl -X POST http://localhost:8080/api/mcp/client \
  -H "Content-Type: application/json" \
  -d '{
    "name": "filesystem",
    "connection_type": "stdio",
    "stdio_config": {
      "command": "npx",
      "args": ["-y", "@anthropic/mcp-filesystem"]
    },
    "tools_to_execute": ["read_file", "list_directory"]
  }'

Go SDK

mcpConfig := &schemas.MCPConfig{
    ClientConfigs: []schemas.MCPClientConfig{
        {
            Name:           "filesystem",
            ConnectionType: schemas.MCPConnectionTypeSTDIO,
            StdioConfig: &schemas.MCPStdioConfig{
                Command: "npx",
                Args:    []string{"-y", "@anthropic/mcp-filesystem"},
            },
            ToolsToExecute: []string{"read_file", "list_directory"}, // Only these tools
        },
    },
}

config.json

{
  "mcp": {
    "client_configs": [
      {
        "name": "filesystem",
        "connection_type": "stdio",
        "stdio_config": {
          "command": "npx",
          "args": ["-y", "@anthropic/mcp-filesystem"]
        },
        "tools_to_execute": ["read_file", "list_directory"]
      }
    ]
  }
}

---

Level 2: Request-Level Filtering

Filter tools dynamically on a per-request basis using headers (Gateway) or context values (SDK).

Available Filters

Filter	Purpose
mcp-include-clients	Only include tools from specified clients
mcp-include-tools	Only include specified tools (format: clientName-toolName)

Gateway Headers

# Include only specific clients
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-clients: filesystem,web_search" \
  -d '...'

# Include only specific tools
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-tools: filesystem-read_file,web_search-search" \
  -d '...'

# Include all tools from one client, specific tools from another
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-tools: filesystem-*,web_search-search" \
  -d '...'

# Include internal tools registered via RegisterTool()
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-tools: bifrostInternal-echo,bifrostInternal-calculator" \
  -d '...'

# Empty clients filter blocks ALL tools - no tools available to LLM
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-clients:" \
  -d '...'
# Result: No MCP tools available (deny-all)

# Empty tools filter also blocks ALL tools
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-tools:" \
  -d '...'
# Result: No MCP tools available (deny-all)

Go SDK Context Values

// Include only specific clients
ctx := context.WithValue(context.Background(),
    schemas.DeepIntShieldContextKey("mcp-include-clients"),
    []string{"filesystem", "web_search"})

// Include only specific tools
ctx = context.WithValue(ctx,
    schemas.DeepIntShieldContextKey("mcp-include-tools"),
    []string{"filesystem-read_file", "web_search-search"})

// Wildcard for all tools from a client
ctx = context.WithValue(ctx,
    schemas.DeepIntShieldContextKey("mcp-include-tools"),
    []string{"filesystem-*", "web_search-search"})

// Include all internal tools (registered via RegisterTool)
ctx = context.WithValue(ctx,
    schemas.DeepIntShieldContextKey("mcp-include-tools"),
    []string{"bifrostInternal-*"})

response, err := client.ChatCompletionRequest(schemas.NewDeepIntShieldContext(ctx, schemas.NoDeadline), request)

// Empty include-clients blocks ALL tools - no tools available
ctx = context.WithValue(context.Background(),
    schemas.DeepIntShieldContextKey("mcp-include-clients"),
    []string{})  // Empty slice = deny-all
// Result: No MCP tools available to LLM

// Empty include-tools also blocks ALL tools
ctx = context.WithValue(context.Background(),
    schemas.DeepIntShieldContextKey("mcp-include-tools"),
    []string{})  // Empty slice = deny-all
// Result: No MCP tools available to LLM

Wildcard Support

Pattern	Meaning
* (in include-clients)	Include all clients
clientName-* (in include-tools)	Include all tools from that client
clientName-toolName	Include specific tool

Tool Naming Convention

Important: All MCP tools follow a consistent naming convention using the prefixed format clientName-toolName:

• External MCP Clients (HTTP, SSE, STDIO): Tools use the format clientName-toolName

  • Example: filesystem-read_file, web_search-search
  • The clientName is the name configured for the MCP client

• Internal (In-Process) Tools: Tools registered via RegisterTool() use the prefix bifrostInternal-

  • Example: bifrostInternal-echo, bifrostInternal-my_custom_tool
  • These tools are registered via RegisterTool() in the SDK

This consistent naming convention ensures clear separation between tools from different clients and prevents naming conflicts across all MCP client types.

---

Level 3: Virtual Key Filtering (Gateway Only)

Virtual Keys can have their own MCP tool access configuration, which takes precedence over request-level headers.

Note

When a Virtual Key has MCP configurations, it generates the x-bf-mcp-include-tools header automatically, overriding any manually sent header.

Configuration

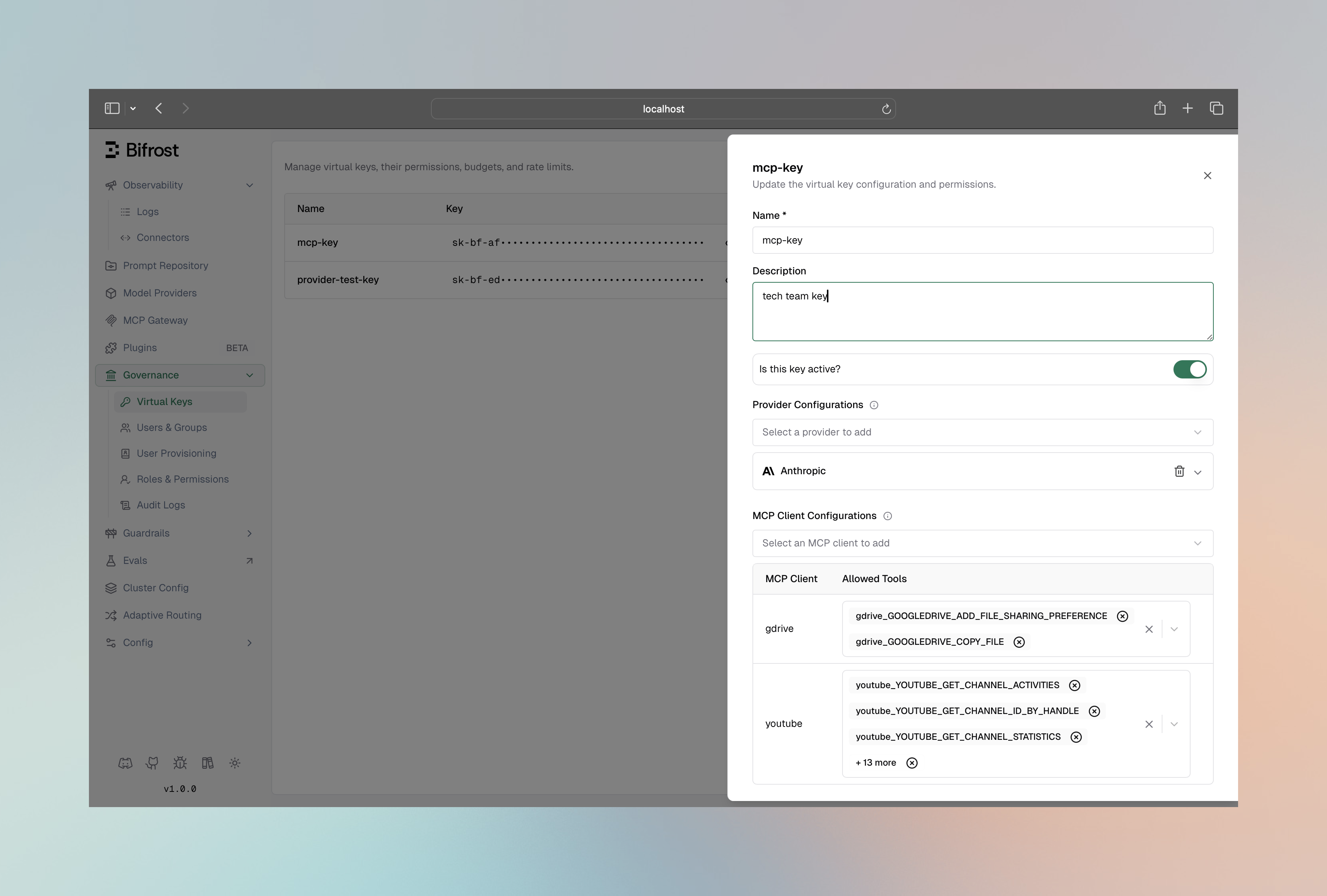

Web UI

1. Navigate to Virtual Keys in the governance section
2. Create or edit a Virtual Key
3. In MCP Client Configurations, add the clients and tools this VK can access

API

curl -X POST http://localhost:8080/api/governance/virtual-keys \
  -H "Content-Type: application/json" \
  -d '{
    "name": "support-team-key",
    "mcp_configs": [
      {
        "mcp_client_name": "knowledge_base",
        "tools_to_execute": ["search", "get_article"]
      },
      {
        "mcp_client_name": "ticketing",
        "tools_to_execute": ["*"]
      }
    ]
  }'

config.json

{
  "governance": {
    "virtual_keys": [
      {
        "name": "support-team-key",
        "mcp_configs": [
          {
            "mcp_client_name": "knowledge_base",
            "tools_to_execute": ["search", "get_article"]
          },
          {
            "mcp_client_name": "ticketing",
            "tools_to_execute": ["*"]
          }
        ]
      }
    ]
  }
}

Virtual Key MCP Config Semantics

Configuration	Result
tools_to_execute: ["*"]	All tools from this client
tools_to_execute: []	No tools from this client
tools_to_execute: ["a", "b"]	Only specified tools
Client not configured	All tools blocked from that client

Learn more in MCP Tool Filtering for Virtual Keys.

---

Filtering Logic

How Filters Combine

1. Client config is the baseline (must include the tool)
2. Request filters further narrow down (if specified)
3. VK filters override request filters (if VK has MCP configs)

Example Scenario

Setup:

• Client filesystem has tools_to_execute: ["read_file", "write_file", "delete_file"]
• Virtual Key prod-key has mcp_configs: [{ mcp_client_name: "filesystem", tools_to_execute: ["read_file"] }]

Request with prod-key:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Authorization: Bearer vk_prod_key" \
  -H "x-bf-mcp-include-tools: filesystem-write_file" \  # This is IGNORED
  -d '...'

Result: Only read_file is available (VK config overrides request header)

Request without VK (if allowed):

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-mcp-include-tools: filesystem-write_file" \
  -d '...'

Result: Only write_file is available (request header applies)

---

Common Patterns

Read-Only Access

Allow only read operations:

{
  "tools_to_execute": ["read_file", "list_directory", "get_file_info"]
}

Environment-Based Filtering

Use different VKs for different environments:

{
  "virtual_keys": [
    {
      "name": "development",
      "mcp_configs": [
        { "mcp_client_name": "filesystem", "tools_to_execute": ["*"] },
        { "mcp_client_name": "database", "tools_to_execute": ["*"] }
      ]
    },
    {
      "name": "production",
      "mcp_configs": [
        { "mcp_client_name": "filesystem", "tools_to_execute": ["read_file"] },
        { "mcp_client_name": "database", "tools_to_execute": ["query"] }
      ]
    }
  ]
}

Per-User Tool Access

Create VKs for different user roles:

{
  "virtual_keys": [
    {
      "name": "viewer-role",
      "mcp_configs": [
        { "mcp_client_name": "documents", "tools_to_execute": ["view", "search"] }
      ]
    },
    {
      "name": "editor-role",
      "mcp_configs": [
        { "mcp_client_name": "documents", "tools_to_execute": ["view", "search", "edit", "create"] }
      ]
    },
    {
      "name": "admin-role",
      "mcp_configs": [
        { "mcp_client_name": "documents", "tools_to_execute": ["*"] }
      ]
    }
  ]
}

---

Advanced: Context-Based Filtering

For SDK users, filtering can be applied at the context level, enabling per-request tool customization:

Go SDK Context Filtering

import (
    "context"
    "github.com/maximhq/deepintshield/core/schemas"
)

// Filter to specific clients
ctx := context.WithValue(
    context.Background(),
    schemas.DeepIntShieldContextKey("mcp-include-clients"),
    []string{"filesystem", "web_search"},
)

// Or filter to specific tools
ctx = context.WithValue(
    ctx,
    schemas.DeepIntShieldContextKey("mcp-include-tools"),
    []string{"filesystem-read_file", "web_search-search"},
)

// Request will only see filtered tools
response, _ := client.ChatCompletionRequest(schemas.NewDeepIntShieldContext(ctx, schemas.NoDeadline), request)

Filter Precedence

When multiple filters apply, they combine as an intersection (AND logic):

Client Config Tools ∩ Request Filters ∩ VK Filters = Available Tools

Example:

• Client config allows: [read_file, write_file, delete_file]
• Request header specifies: [read_file, write_file]
• VK config restricts to: [read_file]
• Result: Only [read_file] available

---

Debugging Tool Availability

Check Available Tools

Gateway API:

curl http://localhost:8080/api/mcp/clients

Response shows tools per client:

[
  {
    "config": { "name": "filesystem", "tools_to_execute": ["read_file", "write_file"] },
    "tools": [
      { "name": "read_file", "description": "Read file contents" },
      { "name": "write_file", "description": "Write to file" }
    ],
    "state": "connected"
  }
]

Check What LLM Receives

The tools included in a chat request depend on all active filters. To see what tools are available for a specific request, check the request body sent to the LLM provider in your logs or observability platform.

---

Next Steps

Virtual Key MCP Tools

Detailed VK tool configuration

Open →

Agent Mode

Configure auto-execution for filtered tools

Open →
