Adaptive Load Balancing

Note

Looking for comprehensive provider routing documentation?

For a detailed guide covering how adaptive load balancing works with governance routing, the two-level architecture (provider + key selection), Model Catalog integration, and example scenarios, see the Provider Routing Guide.

This page focuses on the technical implementation and performance characteristics of adaptive load balancing.

Overview

Adaptive Load Balancing in DeepIntShield Enterprise automatically optimizes traffic distribution across providers and keys based on real-time performance metrics. The system operates at two levels - provider selection (direction) and key selection (route) - continuously monitoring error rates, latency, and throughput to dynamically adjust weights, ensuring optimal performance and reliability.

Key Features

Feature	Description
Dynamic Weight Adjustment	Automatically adjusts key weights based on performance metrics
Real-time Performance Monitoring	Tracks error rates, latency, and success rates per model-key combination
Cross-Node Synchronization	Gossip protocol ensures consistent weight information across all cluster nodes
Circuit Breaker Integration	Temporarily removes poorly performing keys from rotation
Fast Recovery	Momentum-based scoring helps routes recover quickly after transient failures

Tip

Zero-overhead design: All route selection logic adds less than 10 microseconds to hot path latency. Weight calculations happen asynchronously every 5 seconds, so request routing uses pre-computed weights with minimal overhead.

---

Architecture

The load balancing system operates at two levels:

• Direction-level (provider + model): Decides which provider to use for a given model
• Route-level (provider + model + key): Decides which API key to use within a provider

This two-tier approach enables both macro-level provider selection and micro-level key optimization.

graph TB
    Request["Incoming Request<br/>model: gpt-4"]

    subgraph DirectionSelection["Direction Selection"]
        DS["Provider Selector<br/>Score-based selection"]
        DP1["OpenAI<br/>score: 0.92"]
        DP2["Azure<br/>score: 0.85"]
        DP3["Anthropic<br/>score: 0.78"]
    end

    subgraph RouteSelection["Route Selection"]
        RS["Key Selector<br/>Weighted random"]
        K1["Key 1<br/>weight: 850"]
        K2["Key 2<br/>weight: 620"]
        K3["Key 3<br/>weight: 45"]
    end

    subgraph Tracker["Metrics Tracker"]
        T["Real-time Metrics<br/>5-second recomputation"]
        M1["Error Rate"]
        M2["Latency Score"]
        M3["Utilization"]
    end

    Request --> DS
    DS --> DP1 & DP2 & DP3
    DP1 --> RS
    RS --> K1 & K2 & K3
    K1 --> Response["API Response"]
    Response --> T
    T --> M1 & M2 & M3
    M1 & M2 & M3 -.->|"Update Weights"| DS & RS

---

How Weight Calculation Works

Every 5 seconds, the system recalculates weights for all routes based on four factors:

Factor	Weight	Purpose
Error Penalty	50%	Penalizes routes with high error rates
Latency Score	20%	Penalizes routes with abnormally slow responses
Utilization Score	5%	Prevents overloading high-performing routes
Momentum Bias	Additive	Rewards routes that are recovering well

The system combines these into a single score, then converts it to a weight between 1 and 1000. Lower penalties mean higher weights, which means more traffic.

Score = (P_{error} \times 0.5) + (P_{latency} \times 0.2) + (P_{util} \times 0.05) - M_{momentum}

Weight = W_{min} + (1 - Score) \times (W_{max} - W_{min})

flowchart LR
    subgraph Inputs["Raw Metrics"]
        E["Error Rate"]
        L["Latency"]
        U["Utilization"]
        M["Momentum"]
    end

    subgraph Scoring["Score Computation"]
        EP["Error Penalty<br/>50% weight"]
        LP["Latency Score<br/>20% weight"]
        US["Utilization Score<br/>5% weight"]
        MS["Momentum Bias"]
    end

    subgraph Output["Final Weight"]
        NS["Normalized Score"]
        FW["Route Weight<br/>1 - 1000"]
    end

    E --> EP
    L --> LP
    U --> US
    M --> MS
    EP & LP & US --> NS
    MS --> NS
    NS --> FW

---

Key Capabilities

1. Automatic Route Health Management: Routes automatically transition between 4 states (Healthy, Degraded, Failed, Recovering) based on error rates and latency. No manual intervention required when a route fails or recovers.

2. Fair Traffic Distribution: The system prevents any single route from being overloaded while still favoring better performers. Low-weight routes always get minimum traffic to prove recovery.

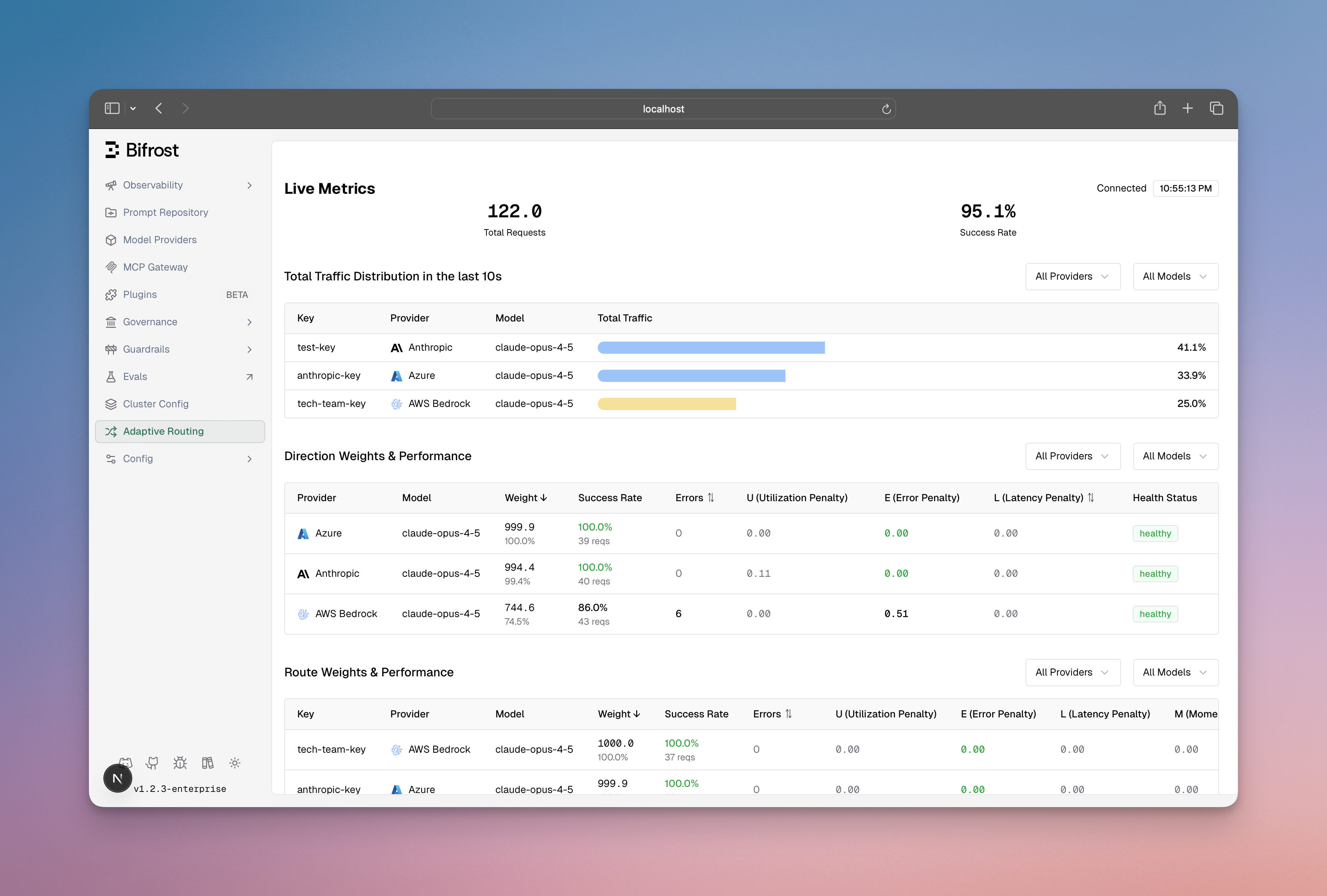

3. Real-time Dashboard: Provides visibility into weight distribution, performance metrics (error rates, latency), state transitions, and actual vs expected traffic per route.

4. Multi-Factor Scoring: Routes are scored using 4 components - Error Penalty (50% weight, time-decayed), Latency Score (token-aware via MV-TACOS algorithm), Utilization Score (fair-share balancing), and Momentum (accelerates recovery after failures).

5. Smart Key Selection: Uses weighted random selection with jitter (5% band) and 25% exploration probability to probe potentially recovered routes, rather than always picking the best route.

6. Performance Thresholds: Specific triggers drive state transitions —> 2% error rate triggers Degraded, >5% error rate or TPM hit triggers Failed, <2% error with 50%+ expected traffic triggers Healthy.

Tip

The system is designed to be self-healing: it penalizes failing routes quickly, but also enables fast recovery (90% penalty reduction in 30 seconds) once issues are fixed.

---

Next Steps

Enable Adaptive Load Balancing

Contact your DeepIntShield Enterprise representative to enable adaptive load balancing for your deployment

Monitor Weight Distribution

Use the dashboard to observe how weights adapt to real traffic patterns

Analyze Performance

Review route state transitions and weight adjustments to understand system behavior
